Kraftsman Mechanically Jointed Flush Casement Windows

Kraftsman Flush Casement Windows

...

Kraftsman is a range of Mechanically Jointed uPVC windows featuring flush sashes, manufactured by Kat. Kraftsman suits contemporary properties and traditional homes. Each window is hand-crafted by our Joiners using high impact, durable uPVC. Because they so accurately replicated timber flush windows, they could be the ideal solution for sensitive period buildings and for properties in conservation areas. Our mechanical window joints are 2.5 times stronger than a welded corner, being able to withstand 4.3 kN (Kilonewtons) of pressure.

Flush Casement Windows are ideally suited to modern-day living, with a sleek, contemporary appearance and almost zero maintenance. Each of the colour finishes has a woodgrain effect which adds depth and character, with the exception of Spectral which has a matt smooth finish.

You can be confident that whatever style you choose, your windows will provide warmth and security and will enhance your home for many years to come.

Key Features of Kraftsman Flush Casement Windows

  • Mechanically jointed sash and frame to replicate timber
  • Joints will withstand 4.3 kN of pressure
  • Lockable night vent facility
  • Sculptured White Woodgrain Ovolo finish to the inside
  • 5 colours from stock each with a textured woodgrain finish
  • NEW Spectral matt finish in Anthracite Grey
  • Suitable for conservation areas
  • 3 elegant handle designs in various finishes
  • Excellent thermal performance - U-Value of 1.4 W/m2K
  • 10 year guarantee

Options

  • Concealed Mullion
  • Georgian bars available to replicate timber windows

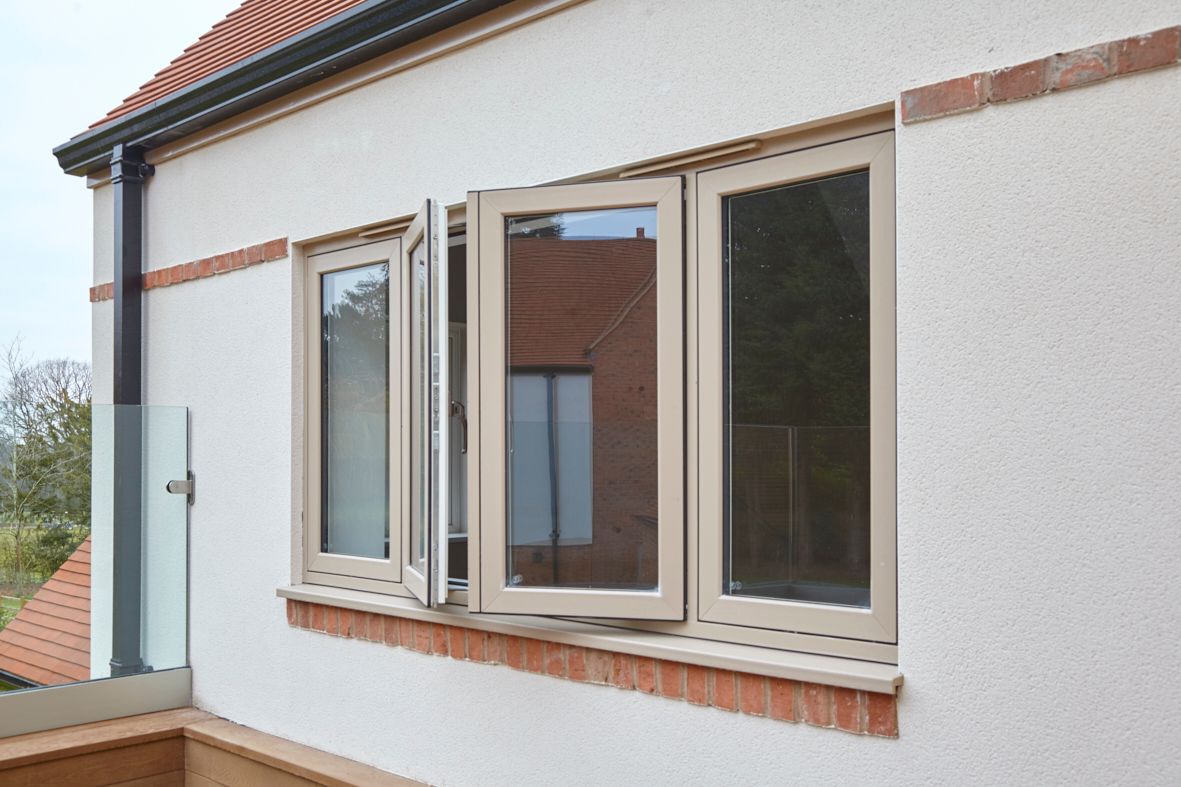

  • Windows can be top hung, side hung or fixed
  • French Windows
  • French Doors
  • Bay assembly
  • Many types of glazing


General Description

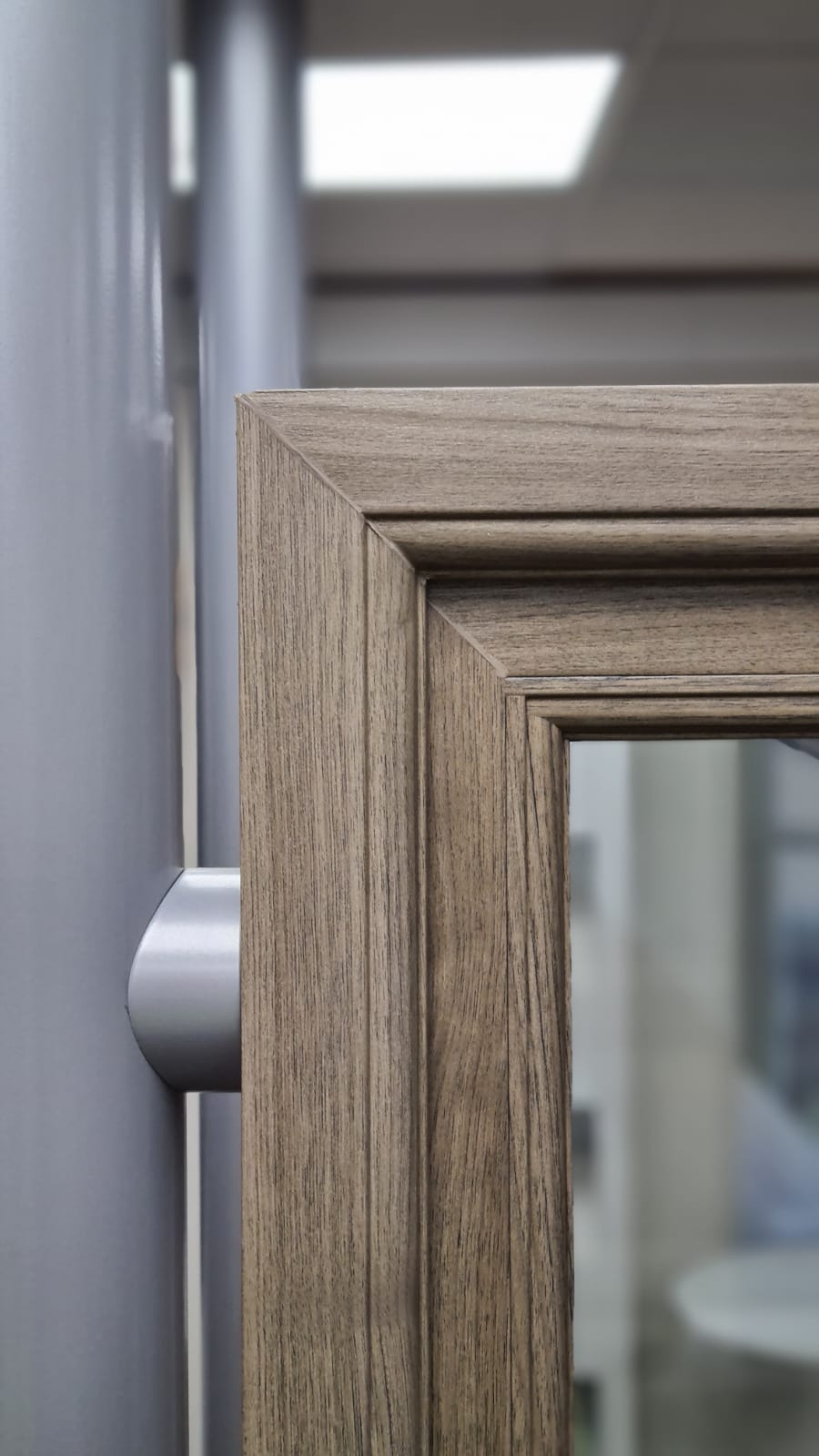

KAT's Halo PVCu Flush Casement Windows are hand-finished with scribed and milled butt joints to closely replicate traditional timber windows. The mechanical joints and slim appearance offer a truly authentic look and from a short distance away it is difficult to distinguish from timber windows.
Manufacturer
KAT
Material
PVCu
Specification
Frame depth 70mm front to back.

A dummy sash is fitted to any fixed window, which gives the impression of an opening sash and provides a balanced appearance, with equal sight lines.

Astragal bars available
in traditional Georgian layouts or twin horizontals.

Joints will withstand 4.3 kN of pressure.

Mechanically joined or Welded sash.
Sash Parameters
Please enquire
Configurations
Comprehensive range of configurations of fixed and opening sashes. Dummy sash to fixed windows creating a balanced appearance and equal sight lines.

Glass specification
28mm double glazing
Hardware
Push-button locking in White, Chrome, Gold, Black, Antique Black or Graphite.

Optional:
Antique Monkey Tail handle or Tear Drop handle in:
Chrome, Antique Black, Graphite or Gold

Fire escape hinge fitted to all side opening windows, as standard
Weathering
U-Value 1.4 W/m2K
Security
Multi-point locking, securing all 4 sides of the opening sash.
Fire escape/easy clean hinges fitted to all side openers.
Shootbolt locking.
Lockable night vent facility.
Security claw for additional security.


Colours
Wide range of colours outside with a woodgrain finish, including White, Light Cream, French Grey, Agate Grey or Anthracite Grey.

Spectral matt finish in Anthracite Grey outside and Smooth White finish inside.

White Woodgrain effect inside with sculptured ovolo mould.

Warranties
10 year warranty

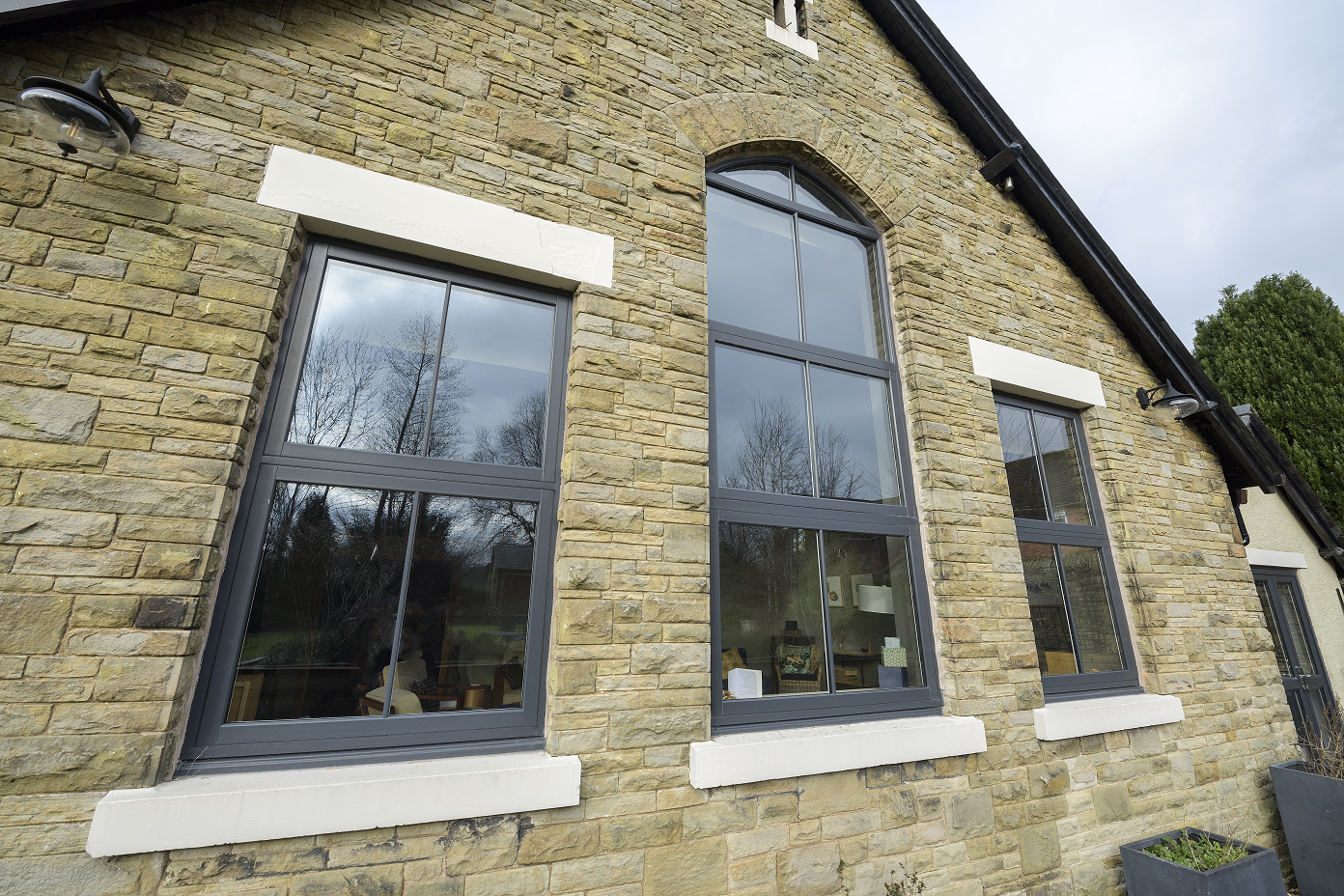

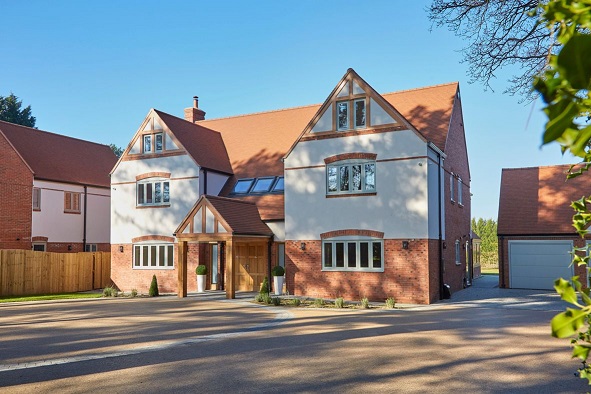

Gallery

...

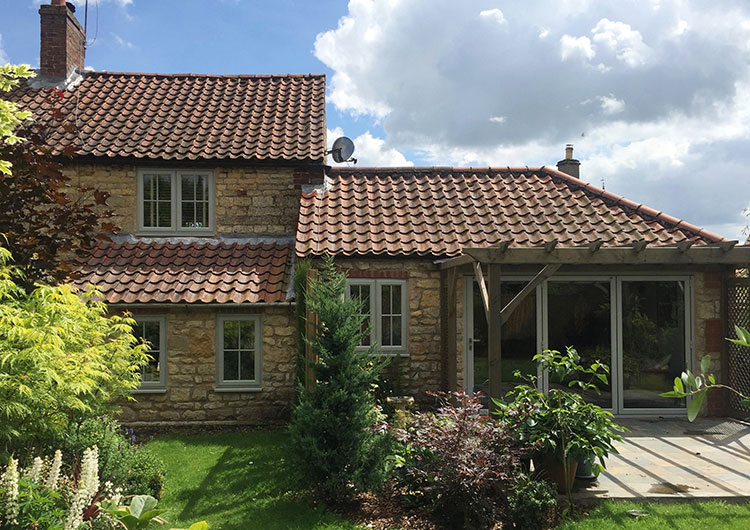

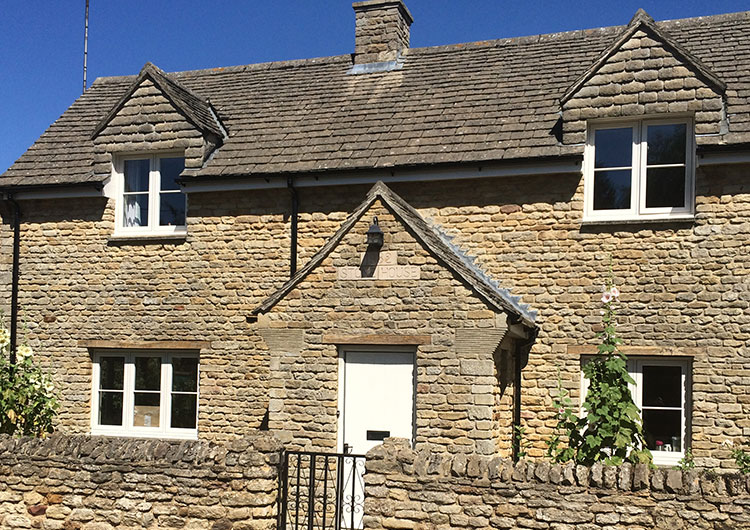

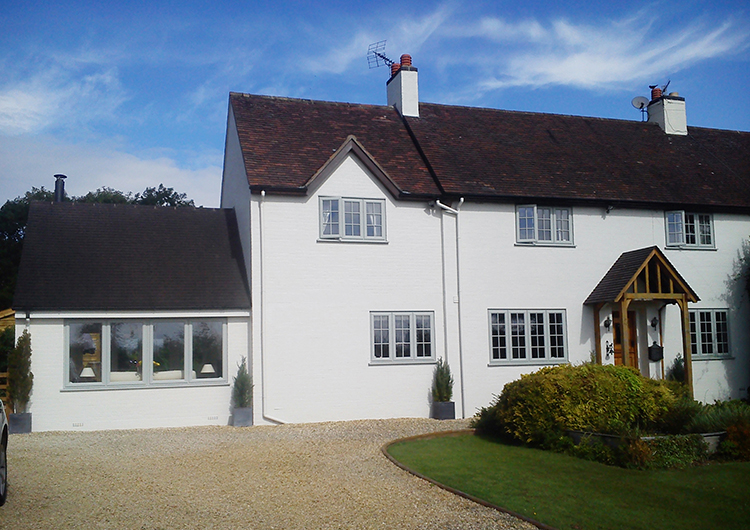

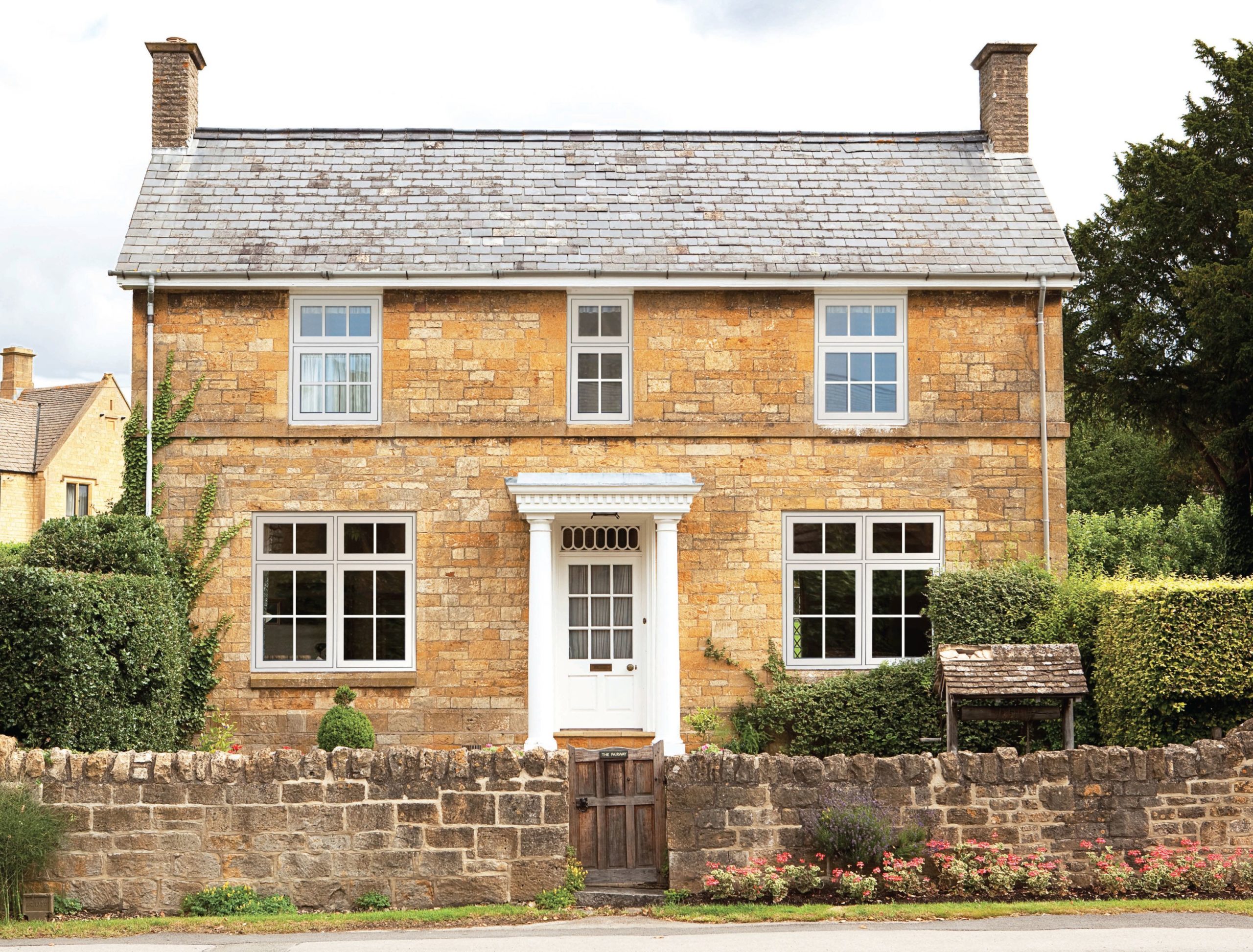

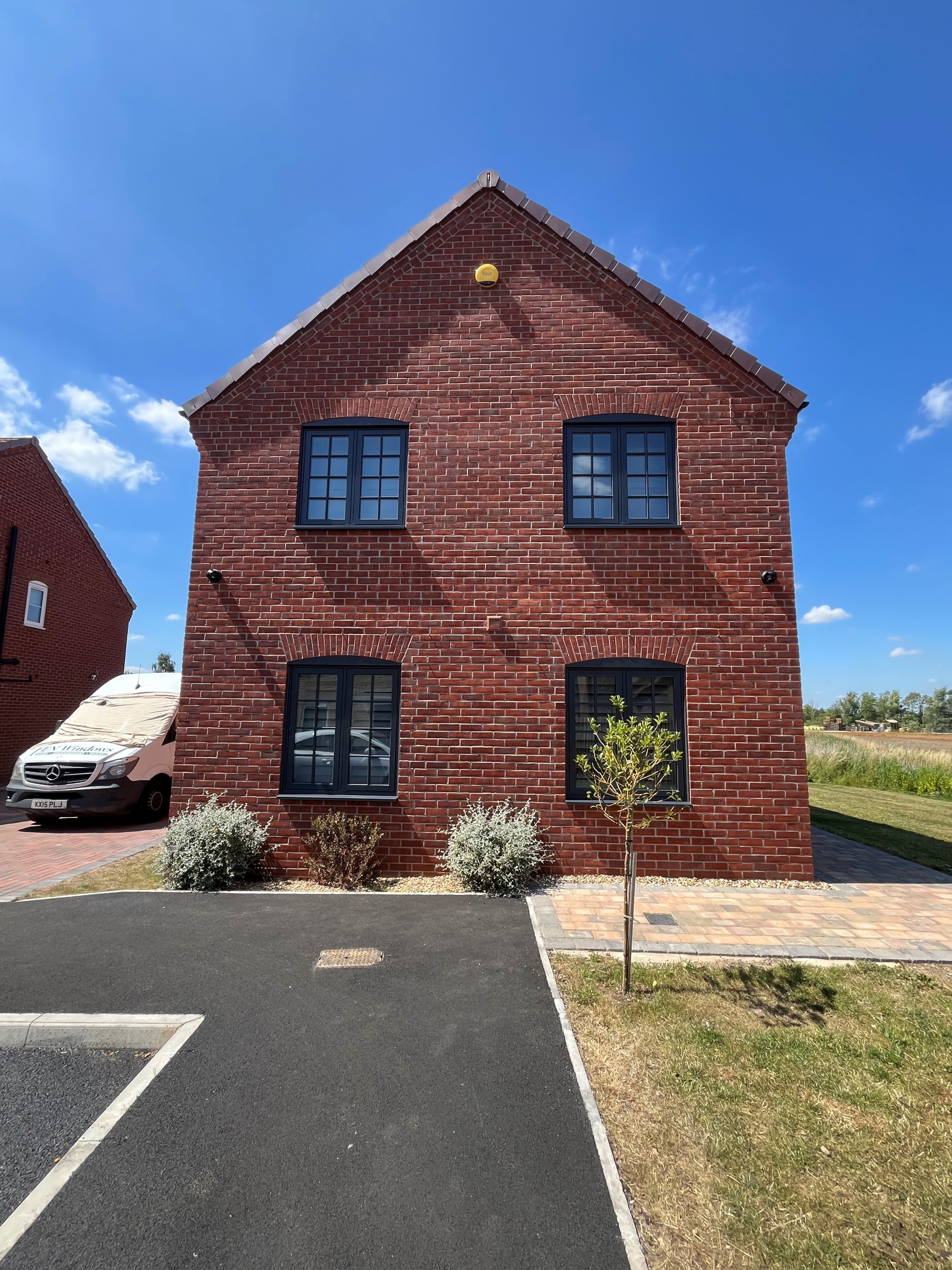

Each Kraftsman Flush Casement Window is hand-finished with scribed and milled butt joints to closely replicate traditional timber windows. The mechanical joints and slim appearance offer a truly authentic look and from a short distance away it is difficult to distinguish from timber windows, providing the ideal solution to replace existing timber windows in conservation areas.

Available in a huge range of finishes, including as standard: Anthracite Grey, Cream, Agate Grey, White and Pebble Grey, and introducing the Spectral Grey external finish which authentically replicates a smooth aluminium finish.

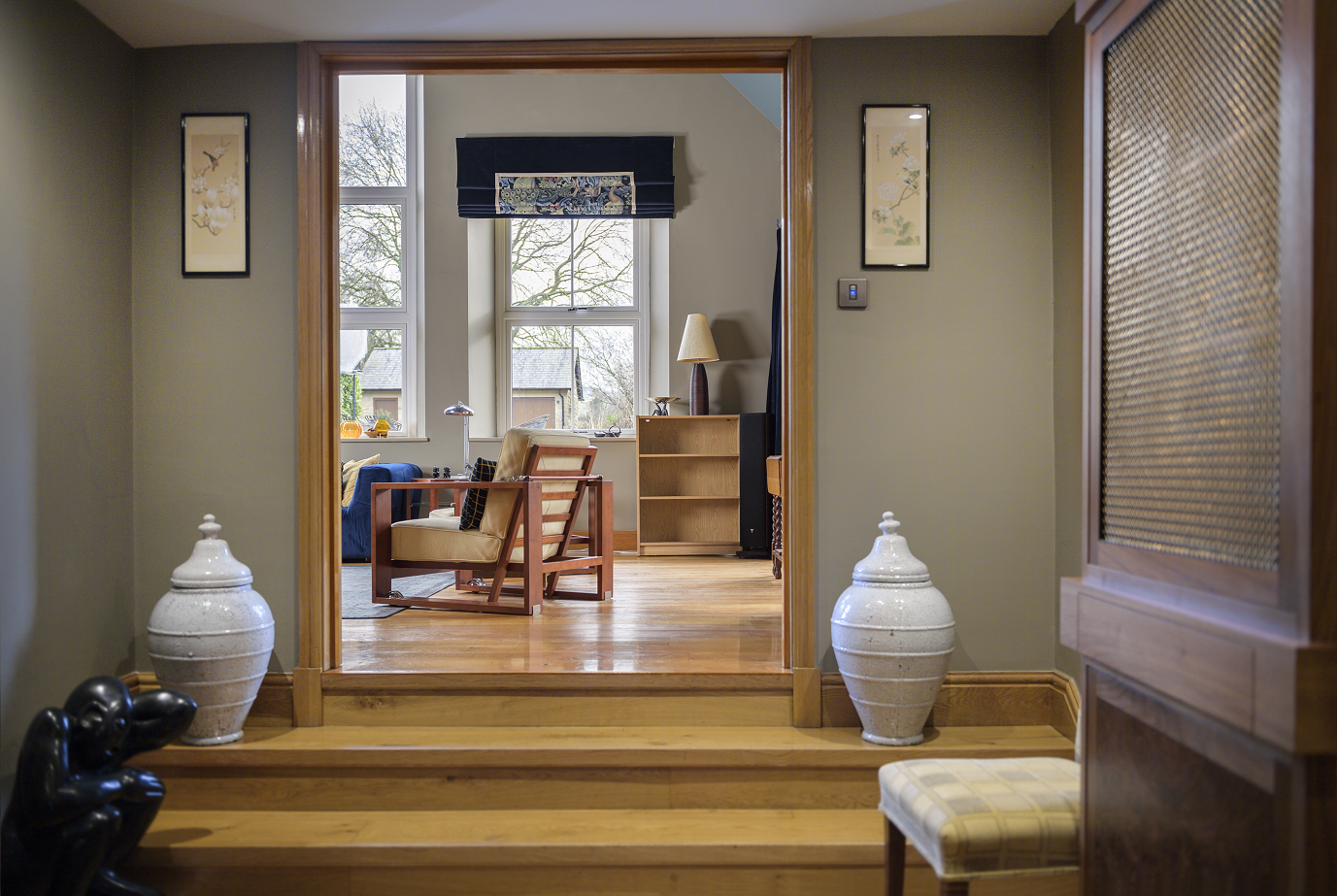

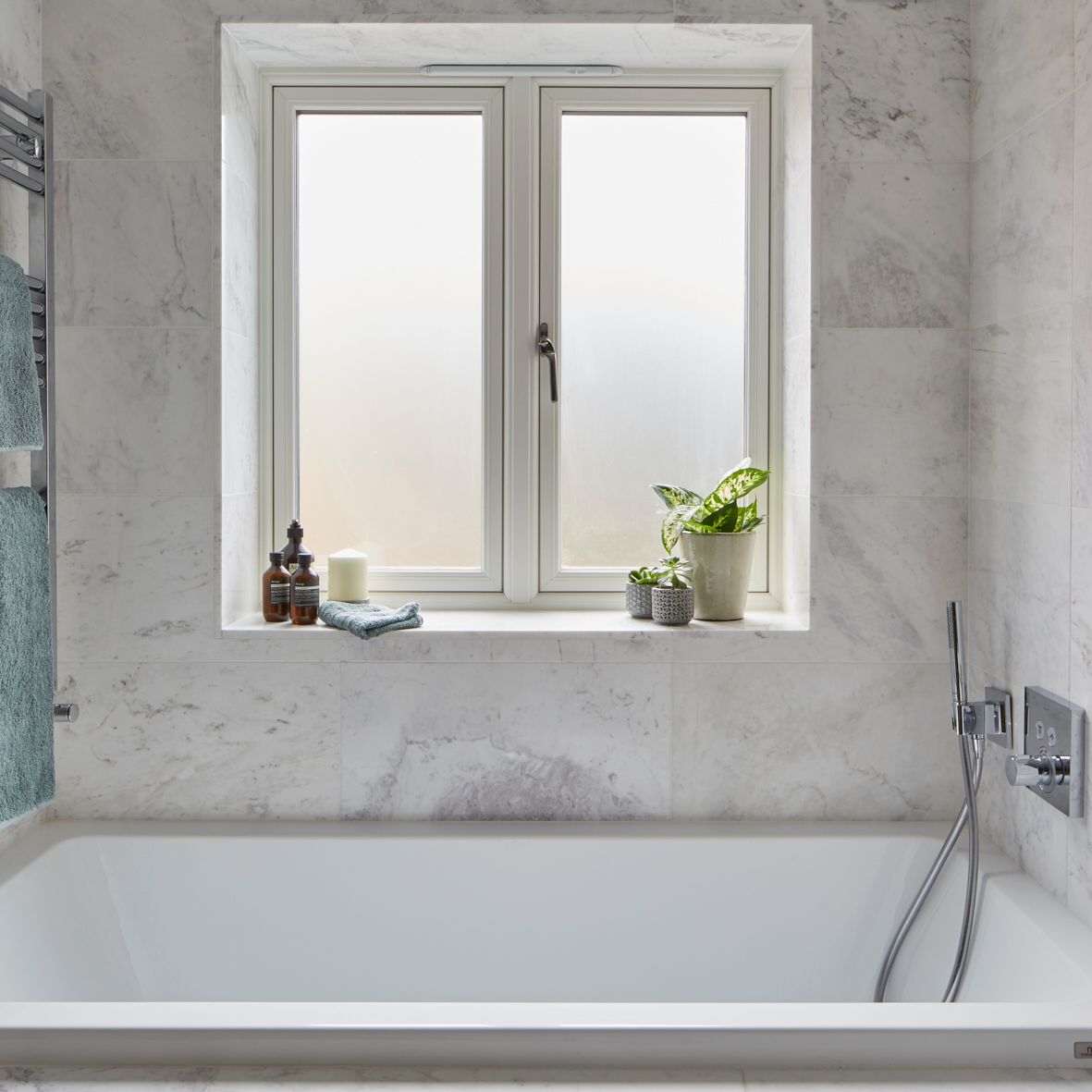

Internally the windows are finished in either a Smooth White or a White Woodgrain finish to replicate timber with an Ovolo sculptured detail.









Material Information

...

uPVC is a versatile material being both light weight and easy to handle, coupled with having good mechanical strength. uPVC is resistant to weathering and corrosion, meaning it requires very little maintenance, which makes it ideal for windows and doors in your home.

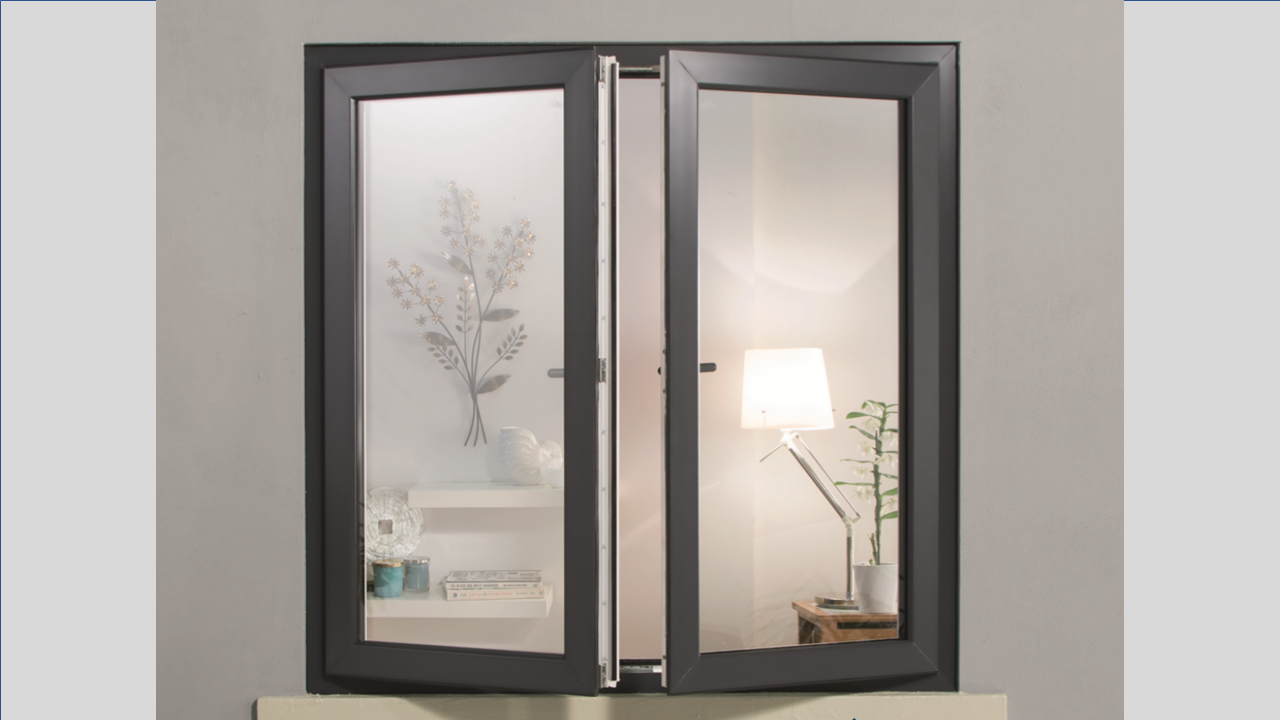

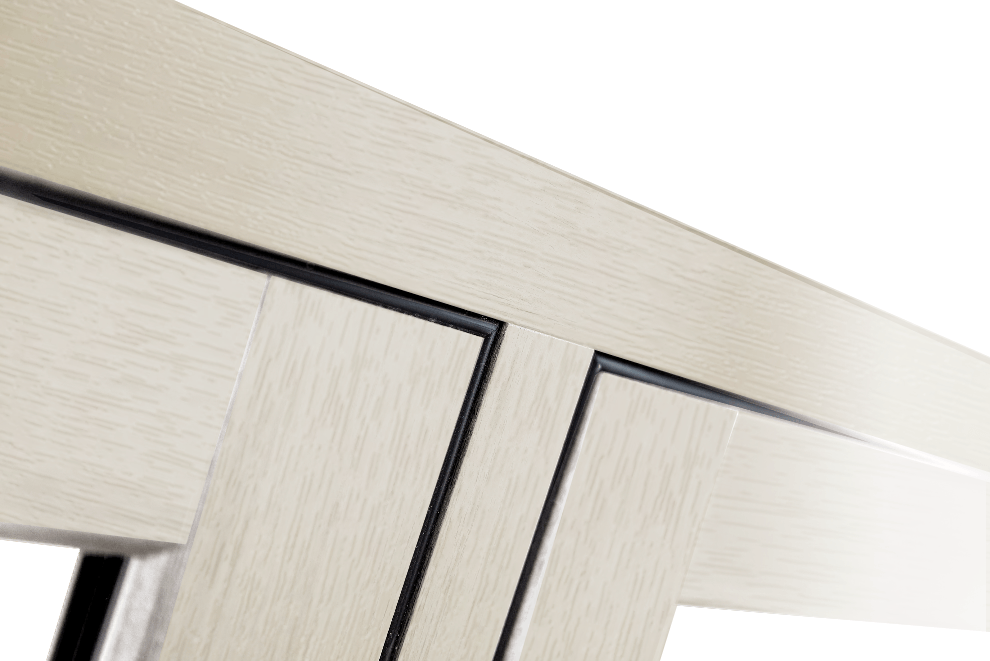

KAT’s Flush Casement Windows feature a visible mullion, a vertical structural bar often seen between window sashes. With a French window, with two opening sashes side-by-side, we can now manufacture a stylish window incorporating an invisible mullion. From outside, the windows have a sleek finish, allowing 20% more light into your home and when the windows are fully open, you benefit from an unobstructed view.







Materials

Accessories

...

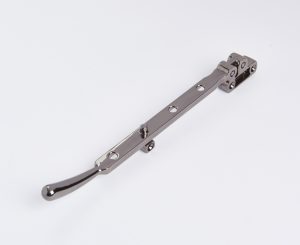

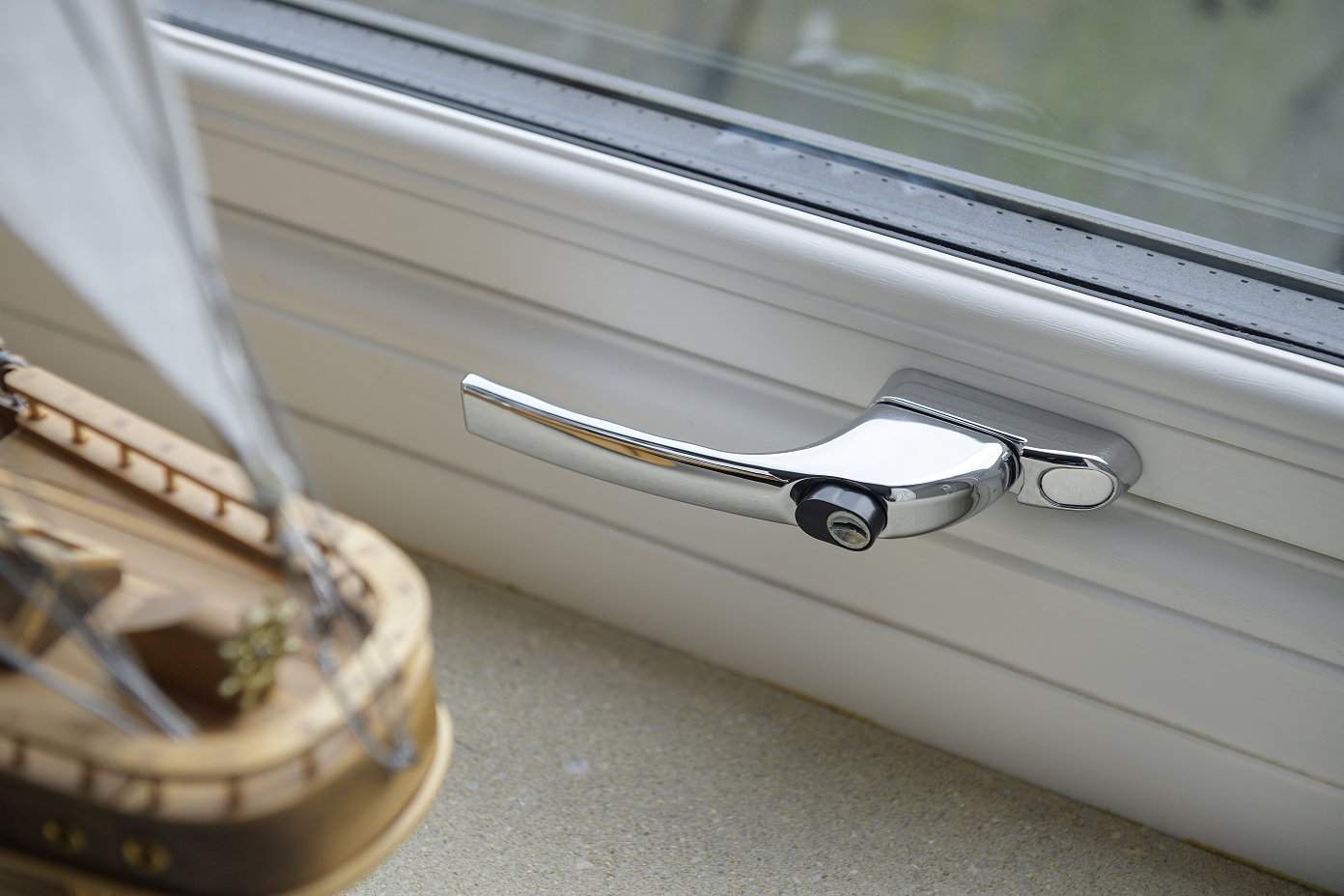

When making a decision about your windows, it is worth spending some time considering the style and colour of the handles. As standard, we fit a push button locking handle, which operates the multi-point locking system, these are available in a choice of White, Chrome, Gold, Black, Antique Black or Graphite.

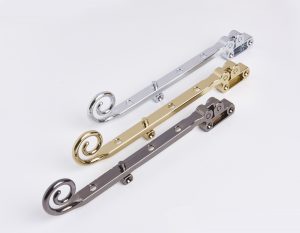

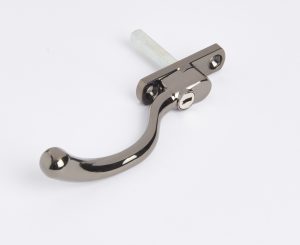

You can choose an Antique Monkey Tail handle or a Tear Drop handle (as pictured) in Chrome, Antique Black, Graphite or Gold.









Accessories

Safety & Security

...

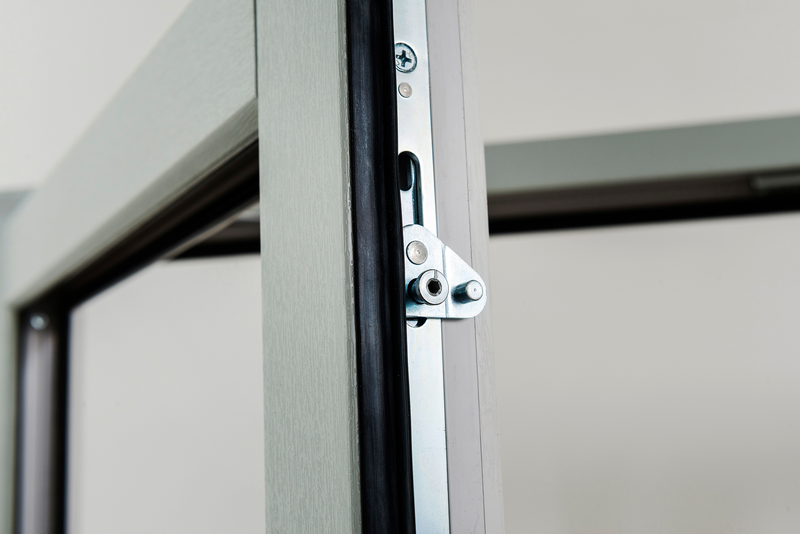

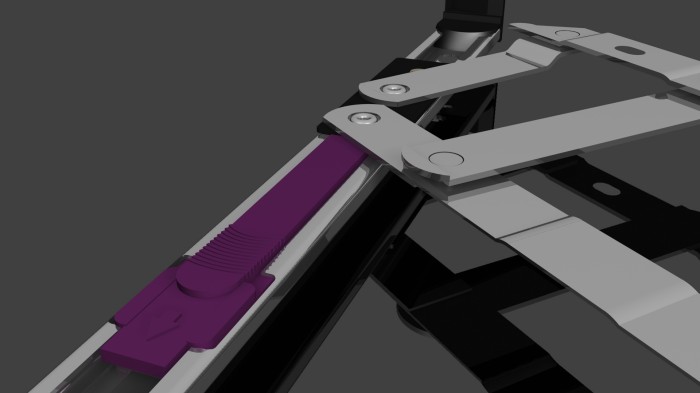

Every window is secured by a multi-point locking system, securing points on all four sides of the opening sash, for your safety and security. We fit fire escape hinges on all side opening windows, as standard.







Safety & Security

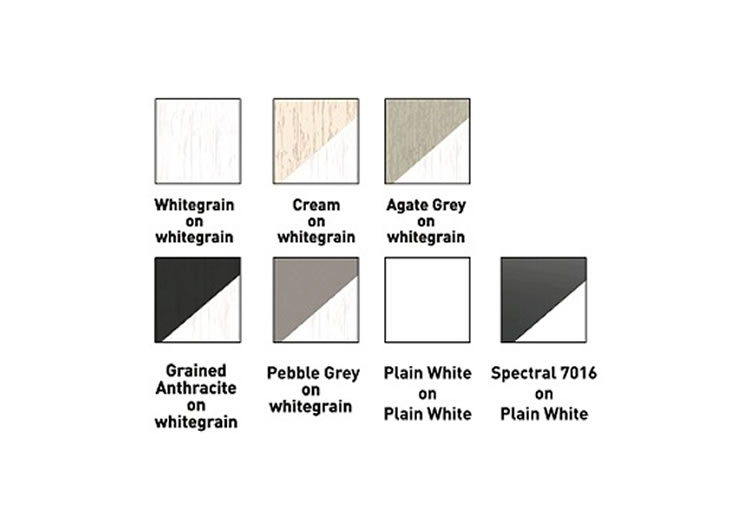

Colour Options

...

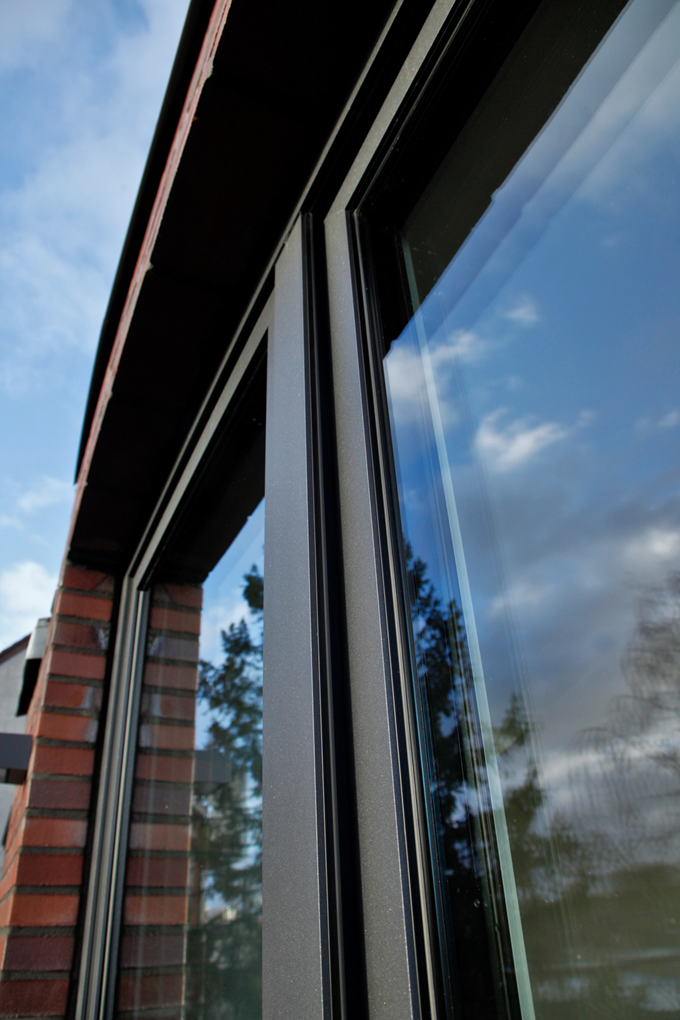

Our Flush Casement Windows are available in a luxurious Spectral Grey finish which authentically replicates a smooth aluminium finish.

If you prefer a woodgrain effect which replicates timber, choose from 5 contemporary colours externally:

White

Cream

Agate Grey

French (Pebble) Grey

Anthracite Grey

All windows have a White Woodgrain finish internally as standard. If preferred, we also offer a Smooth White finish internally and externally.
