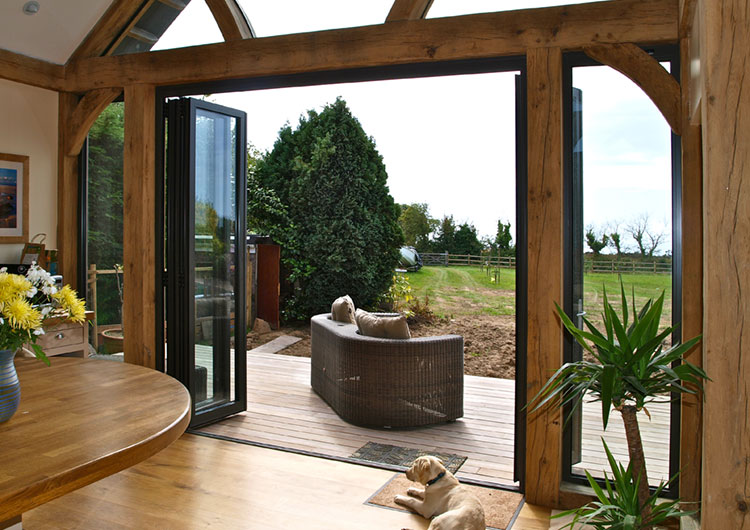

Aluminium Bi-fold Doors

Luxury Aluminium Bifold Doors designed & manufactured in the UK


Thanks to the influence of Grand Designs and our desire for more light and space, Aluminium Bifold Doors have become a phenomenon. If you have the space to stack the Bifold Doors to the left or right, or on both sides, when they are fully open, then a Bifold Door could be ideal for you. Bifold doors can be fully opened to around 90 per cent of the full opening width, allowing you the flexibility to let in lots of fresh air and move around freely. On days when you don’t wish to open the doors fully, you can choose to have a single traffic door, allowing you easy access between your home and garden all year round. KAT’s Bifold doors are the ultimate alternative to Schuco Bifolding doors.

KAT Aluminium bifold doors offer exceptional weather resistance and are made to bespoke sizes to suit your project.

Key features of KAT Aluminium Bifold Doors

  • U-Value of 1.5 with a 1.0 centre pane
  • Slim frames, more glass area
  • Available in Anthracite Grey, Traffic White or Jet Black from stock
  • Choose from seven handle finishes
  • Black intermediate handle and hinges as standard
  • Fully weather rated standard threshold
  • Up to 7 opening sashes
  • Multi-point locking to lead door
  • Quick glaze bead


  • Dual colour option
  • Upgrade to PAS 24:2016 available
  • 85mm, 150mm, 190mm, 225mm and Integrated cill options
  • Trickle vents fitted in 42mm Add-on to the head

General Description
Totally bespoke bi-folding doors. Excellent thermal, acoustic and security performance. 14 possible configurations with a 10 year manufacturers' guarantee. Quick glaze bead as standard.

PAS 24:2016 accredited is available as an option.
Sashes are internally beaded.

Colour Options
From stock, we supply:
Single colour:
Anthracite Grey, Traffic White or Jet Black

Also available on a slightly longer lead time:

Dual colour options and a wide range of RAL colours, including metallic or wood effect finishes with a 25 year paint guarantee.

Sash options 2, 3, 4, 5, 6 or 7 panels
Inward or outward opening doors
Sliding options to left or right
122mm sightline at interlock in closed position.
Pre-gasketed sash means no more gasketing during installation. Quick glaze bead.
28mm double glazed sealed units as standard, when requested
Planitherm Total Plus Low Emissivity, soft coat glass
Clear or Obscure glass
Argon filled units with Warm Edge Spacer
High performance thermal break - double glazed doorset. U value of 1.5 W/m2K with 1.0 Centre Pane. (1.4 W/m2K U value with triple glazing).
Lever handle to operate lead door available in a choice of seven finishes; Anthracite, White, Gold, Stainless Steel, Black, Chrome or Rose Gold.
Hinges and intermediate handle in Black as standard.

Outerframe dimensions
70mm deep outerframe
Sash dimensions
Individual Sash maximum width: 1200mm (if double glazed only)
Minimum sash width: 700mm
Maximum Sash height: 2500mm
Maximum individual sash glass weight: 100kg
122mm at interlock

Security and Performance
Has been independently tested to meet PAS 24:2016 (available as an option)

Class E (750Pa) water tightness;
Class 4 (600Pa) air permeability
Class 4 (1800Pa) wind load



Aluminium is the perfect material because it allows for narrow, aesthetically pleasing frames, is extremely strong and very low maintenance.

Our bifolding doors have been independently tested against wind, water and air pressure. They come with an extended 10 year warranty and our simulation tests have shown that they have a life expectancy in excess of 25 years.


Material Information


Aluminium is the optimum material for manufacturing windows and doors and that is why it is widely specified by Architects for most serious new build and refurbishment projects.

Aluminium bifold doors require very little maintenance, just an occasional wipe with a damp soapy cloth and a regular check to ensure the track is kept free from grit and small stones to ensure the doors continue to run smoothly. Aluminium is more resistant to the elements than uPVC and is not likely to warp or rot. We offer a 10 year warranty on standard paint and a 25 year warranty on Marine Grade paint.




With our huge range of exclusive aluminium bifold doors we also offer you a complete range of accessories from handles, to threshold options, to opening configurations.

A lever handle is fitted to the master or traffic door, in a choice of seven finishes; Anthracite, White, Gold, Stainless Steel, Black, Chrome or Rose Gold.

We fit a black handle and black hinges to the intermediate doors which allows for flush stacking panels when the doors are fully open.

Please consider your choice of ancillary hardware carefully because that is what you will eventually notice most when your products are installed.



Safety & Security


Our bifolding doors are designed to discourage intruders, thanks to the security hinges, locking mechanisms and a unique heavy-duty roller design to provide the security and reliability demanded in high traffic applications.

All these elements prevent our bifolds being lifted off their base channel or being jemmied when closed.

An upgrade to PAS 24:2016 security standards is available on request.

Safety & Security

Colour Options


We carry stock of the three most popular colours and finishes, so that we can manufacture your bespoke Bifold Doors with a fast turnaround. These are Anthracite Grey, Traffic White and Jet Black.

We also offer a wide choice of RAL colours, including a metallic or wood effect finish, with a dual colour option.

Just let us know your sizes and how you would like the doors to open and we can make your Aluminium Bifold door to your bespoke dimensions.

Call into our Showroom in Macclesfield and we can show you a colour chart demonstrating each of the RAL colours available.
