Schüco Aluminium Casement Windows

Watch Video

Schüco Aluminium Casement Windows – designed in Germany, manufactured in the UK


Why buy Schüco Aluminium?
The way we live makes a statement about who we are. Schüco Aluminium windows are luxury products, beyond the budgets of many. They are chosen for their pure quality, their exceptional engineering and for their performance guarantee. They will add value to your property and be admired by your friends because buying KAT Schüco Aluminium windows and doors is not about spending, it’s about making an investment.

Our Schüco Aluminium AWS 70 window system combines elegant contemporary styling, architecture, design and function, with exceptional energy efficiency. Widely acknowledged by most leading Architects as best in class, these windows ooze quality. Slim profile sightlines guarantee more glass and more natural light, which together with industry leading U values help create the optimum modern living space. Security and lower fuel bills are a given, of course. .


Key features of our Schüco Aluminium Windows

  • Any RAL colour, textured or anodised finish

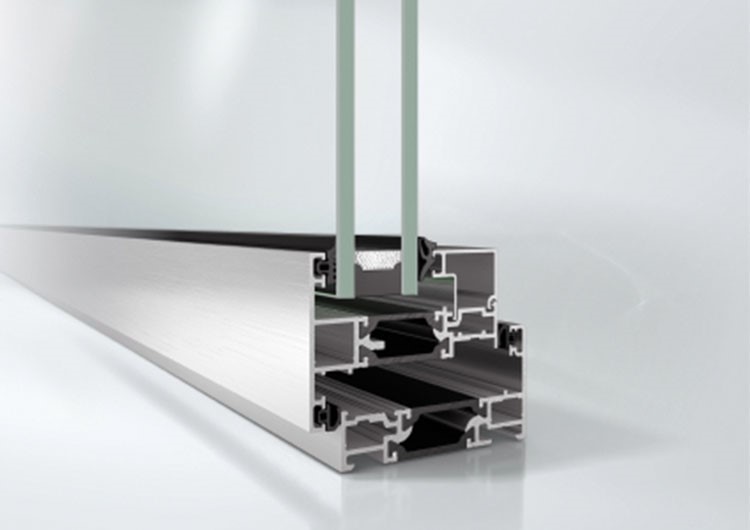

  • Slim sightlines from 63.5mm, means more glass, more light
  • All main profile sections are thermally broken
  • Handles in Anodised Silver, Black or White
  • Contemporary square bead as standard
  • Compact open-out windows compatible with Schüco doors
  • Compact open-out windows compatible with Schüco doors
  • Compact open-out windows compatible with Schüco doors
  • Standard U-Value 1.5 W/(m²K) - 1.0 available on request
  • High performance glazing to include laminated safety glass, if required


  • Windows can be side hung, top hung or fixed lights
  • For Tilt Before Turn, please visit our separate product page
  • An externally beaded option is available
  • Cill choices are 85mm, 150mm or 190mm deep, with 25mm platforms

General Description
Schuco Aluminium Casement windows are available in a comprehensive range of configurations; outward opening, top hung, side hung or fixed. All windows are manufactured with smooth operation, security and low maintenance in mind and are fitted with modern hardware and available in a vast array of finishes.
Frame depth 70mm front to back
Side Hung Sash
Minimum sash width – 350mm
Maximum sash width – 700mm
Minimum sash height – 500mm
Maximum sash height – 1600mm

Maximum sash weight 42kg
Top Hung Sash
Maximum sash width – 1800mm
Maximum sash height – 1800mm

Maximum sash weight 100kg
85mm deep
150mm deep
190mm deep

25mm platform on all cills
Comprehensive range of configurations of fixed and opening sashes. 44mm add-on if Trickle Vent required or trickle vent through the sash available.
Cranked handle in Anodised Silver as standard.
White and Black available to order
‘Planitherm Total +’ low emissivity 28mm sealed units
Clear glass, soft coat lamination, argon filled units.
Can accommodate glazing up to 34mm.
Security and Performance
Espagnolette window locks with key locking handles
Option for windows to conform to PAS24
Any RAL colour can be supplied including dual colours.



Our windows are precision engineered, created in our technically advanced factory, where we have over £500k of fully automated, computer numerically controlled (CNC) machining equipment. Because of this and because of our attention to detail, our factory is widely regarded by professionals in the window trade as one of the best in the UK.  Each window is hand-finished and undergoes a full quality inspection before being wrapped, prior to being shipped on our own fleet of lorries.

There is a huge range of colour and finish options and we can easily supply your windows in a different colour inside and outside if you wish, which we call dual colour. Design your window to be top hung, side hung or simply specify a fixed window (non-opening) and as most people choose open-out windows, it means they don’t interfere with your curtains or blinds. In-glass blinds are now a popular choice too.

Schüco Aluminium Windows are fully compatible in design and specification with KAT Schüco ALuminium Bifolds and Patio doors, all supplied with the comfort of a 10 Year guarantee.

Blinds Within Glass


Integral venetian blinds are designed specifically to sit neatly inside a sealed glass unit, between the panes of glass. A totally maintenance free option, they allow you to discard dust attracting curtains or roller blinds. They are utterly contemporary, available in a choice of 10 colours; White, Yellow, Hay, Sage, Sky, Cream, Putty, Silver, Dark Silver and Dark Grey.

Raising and lowering integral blinds is controlled using either Rotational Wands or Knobs, or a Cord system, also by Solar Powered units or by powering them via your mains supply. Our blinds carry a 5 year guarantee, are maintenance free, conform to BSEN 13120 Safety Standards and are suitable for 28mm double glazed window sashes, up to 1200mm wide.

Material Information


Aluminium is the world’s most abundant metal and is the third most common element, comprising 8% of the earth’s crust and has a strength to weight ratio superior to steel.  The excellent strength to weight ratio of aluminium has made it an important material for the construction of aircraft, ships, many cars and also commercial vehicles.

When the surface of aluminium metal is exposed to air, a protective oxide coating forms almost instantaneously which gives excellent corrosion resistance. This oxide layer can be further enhanced with surface treatments such as anodising. It is widely recognised that aluminium is the best material for making windows and doors from, when they are to be installed in marine environments.

The recyclability of aluminium is unparalleled. When recycled there is no degradation in properties when recycled aluminium is compared to virgin aluminium. Furthermore, recycling of aluminium only requires around 5 percent of the input energy required to produce virgin aluminium metal. Currently around 60% of aluminium metal is recycled at the end of its lifecycle but this percentage can still be vastly improved.




Furniture for our Schüco Aluminium Windows can be manufactured in austenitic steel which is a marine grade finish for coastal applications. Our standard ‘bespoke to KAT’ range is perfect for most domestic applications of course.

Check out the finishes on our handles because it is our attention to detail that helps make this unique product range so appealing.

Handles are available in:

  • Anodised Silver
  • Black
  • White


Safety & Security


Our Schüco Aluminium Windows are manufactured so precisely that the spacing around every window sash is so tight that would-be intruders will be deterred. In addition to this, key locking handles and security locking devices are fitted to all KAT windows, as standard.

Rest assured that our windows meet the strict requirements of PAS 24:2016, the industry standard for Enhanced Security Performance.

Safety & Security

Colour Options


Take care when choosing your frame and window furniture finish. Your selection should be influenced by the style of your property, surrounding architecture or the doors within your home.

KAT Schüco Aluminium Casement Windows are available in a wide range of RAL colours. The three most popular colours are White Gloss, Anthracite Grey and dual colour Anthracite Grey outside and White Gloss inside.

Call into our showroom in Macclesfield and we can show you a colour chart demonstrating all of the available colours and finishes.


Questions? us today!

If you wish to find your KAT design partner, have any questions or would like to discuss our premium range of products then please contact us.
