Aluminium Sliding Patio Doors

Watch Video

Quality aluminium sliding patio doors designed & manufactured in the UK

...

Our aluminium sliding patio door system is perfect for smaller openings up to 5 metres wide.  This patio door features slim sightlines but is very secure. When coupled with low emissivity glazing, these thermally enhanced doors achieve very acceptable U values.  These inline sliders are perfect for applications where it is desirable not to open in or out of a room and they offer a far larger glass area than a set of French double doors.

Key features of Aluminium Sliding Patio Doors

  • Luxury door handles which are exclusive to KAT with 10 year guarantee
  • 3 star diamond rated cylinder with kitemark
  • Slim aluminium sections means more glass and more light
  • Option of 2, 3, and 4 panel openings
  • Choose from 7 colours, including dual colours with a 25 year paint guarantee option
  • Choice of easy access thresholds
  • Midrail option for front door applications with letterbox

Options

  • Integrated blinds fitted between 2 panes of double glazing


General Description
Elegant and efficient in line system in a range of options with slim sightlines.
Dimensions of Duo Track
2 pane width 1600m min – 4000mm max
3 pane width 2400mm min – 6000mm max
4 pane width 3200mm min – 8000mm max
Height 1600mm min – 3000mm max
Configuration
2, 3 or 4 panes
Weight
Maximum 200kg panel weight for inline sliders
Hardware
Vanguard handles designed exclusively by KAT, available in Chrome, Brushed Chrome, Gold, Black, White or Grey – guaranteed for 10 years
4 hook lock
Stainless steel wheels and tracks
Tandem rollers
Pentalock option for additional security in black, white and satin silver.
Threshold
Standard frame size, thermally broken
Height is 50mm.
Glass
Standard is 28mm
Also 28mm – 32mm available on request
Weathering
Intended for domestic use – not high rise
Weather Test Results –
Air 600 Pascals
Wind 2400 Pascals
Water 150 Pascals
U value 1.8, dependant on glass
Security
Designed, tested and manufactured to the highest security standards with high security multi-point locking
3 Star Diamond Rated Cylinder with Kitemark
Colours
Single Colours:
• 9910 Hipca White High Gloss
• 7016 Anthracite Grey Matt
• 9005 Black Matt
• 7035 Light Grey Semi-gloss
• 9001 Cream Matt

Dual Colours:
• 9005 Black matt outside / 9910 Hipca White High Gloss inside
• 7016 Anthracite Grey Matt outside / Hipca White High Gloss inside

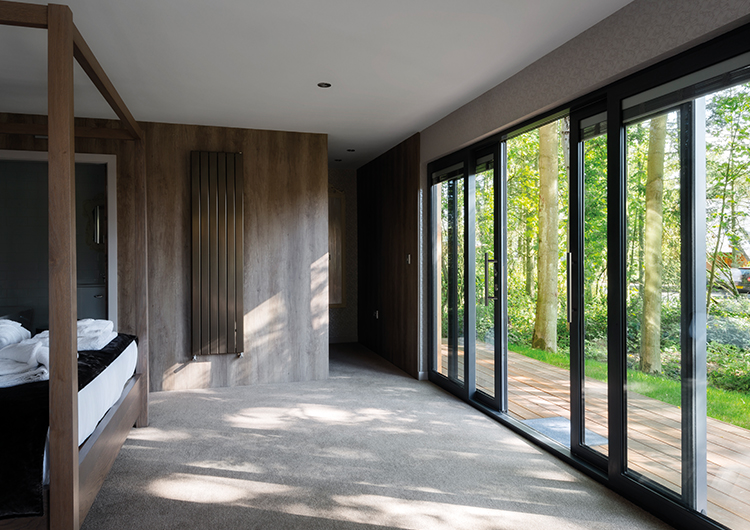

Gallery

...

It’s not the door you look at but the view through the door to the world outside.

Our standard patio doors allow so much light in because there are so few upright panels.  Given that we offer Contemporary and Heritage paint ranges, we can manufacture doors as individual as you are. Incorporate a KAT patio door and add a true sense of contemporary design to your project.



CONTACT KAT TODAY

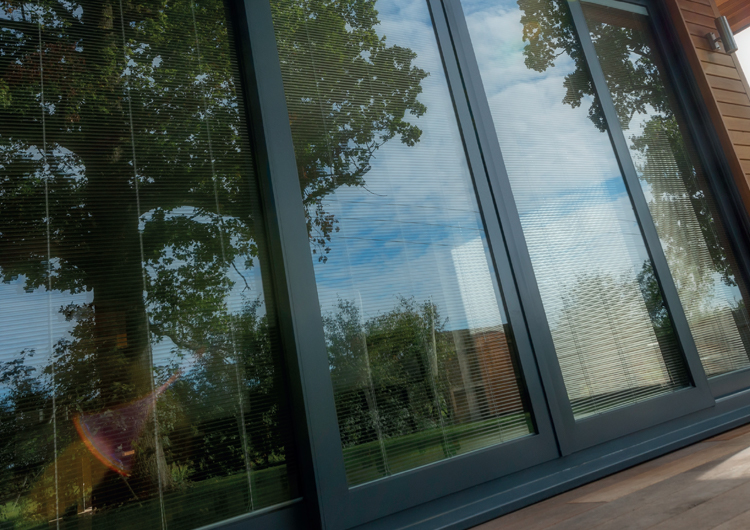

Blinds Within Glass

...

Integral venetian blinds are made to fit neatly between 2 panes of glass, offering a contemporary look for Sliding Patio Doors in a choice of 10 colours; White, Yellow, Hay, Sage, Sky, Cream, Putty, Silver, Dark Silver and Dark Grey.

Raising and lowering of the blinds is controlled using either a Rotational Wand, Rotational Knob or a Cord system. The blinds carry a 5 year guarantee, are maintenance free, conform to BSEN 13120 Safety Standards and are suitable for 28mm double glazed door sashes up to 1200mm wide.



Material Information

...

Aluminium offers the widest possible choice of colour options.

Aluminium doors require very little maintenance, just a wipe with a damp cloth when needed and a regular check to ensure the track is kept free from grit and small stones to ensure the doors continue to run smoothly. Aluminium is more resistant to the elements than PVCu and is not likely to warp or rot. We offer a 10 year warranty on standard paint in a choice of 7 colours or 25 years warranty on Marine Grade paint.



Materials

Accessories

...

With our huge range of exclusive designer doors we also offer you a complete range of accessories from handles, to threshold options, to opening configurations.

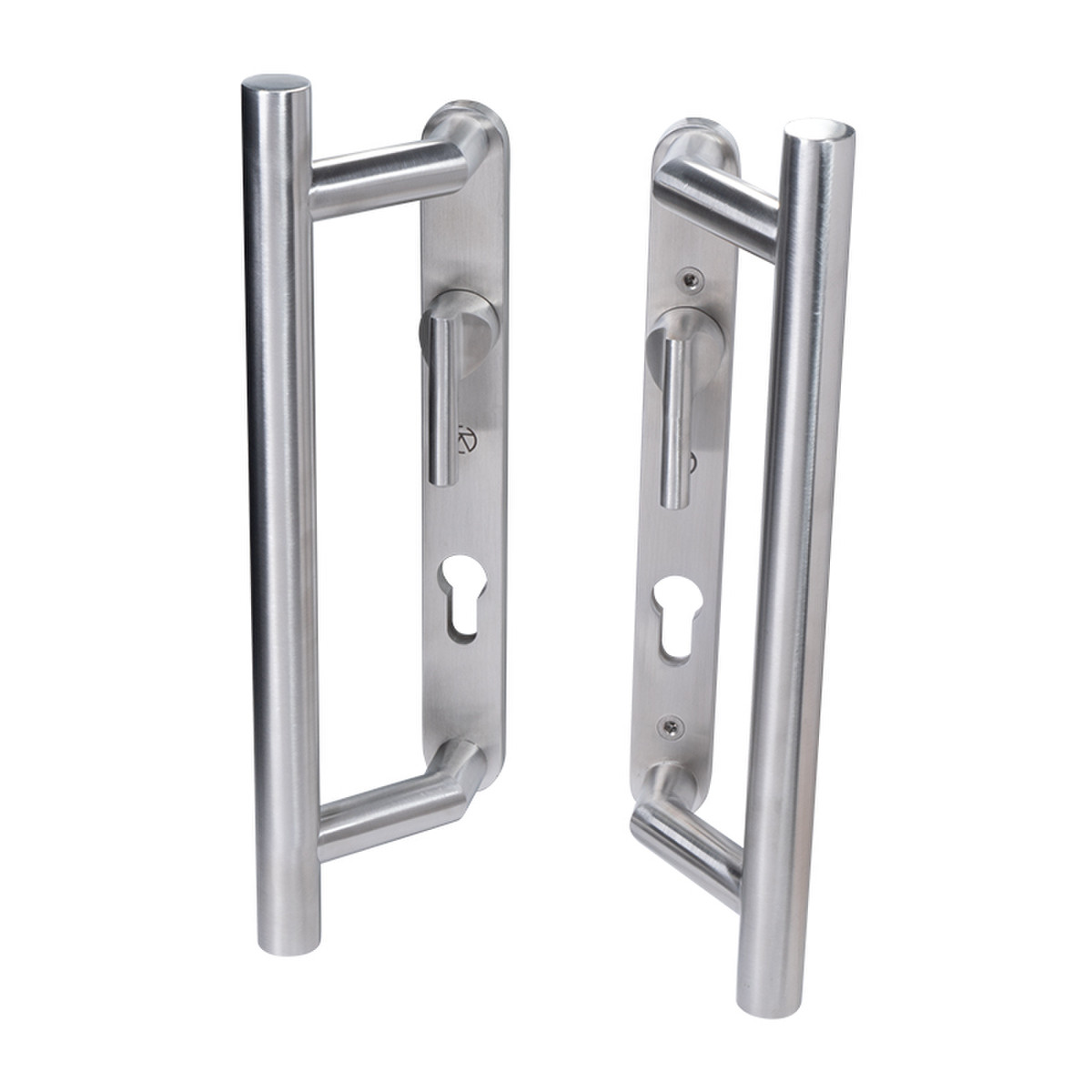

Our patio door handles are luxury products, designed by the KAT team and crafted from Stainless Steel. Choose from six different finishes, each with a 10 year guarantee.

Please consider your choice of ancillary hardware carefully because that is what you will eventually notice most when your products are installed.



REQUEST A QUOTE



Accessories

Safety & Security

...

Our aluminium in-line sliding patio doors are designed to discourage even the most determined intruder, thanks to our high security locking systems.

All KAT doors can have a 3 star diamond rated security cylinder with Kitemark.

Our patio doors have integrated anti-lift systems designed so they cannot be lifted off the track from the outside, when in the locked position. Plus, aluminium is a more robust material than timber or PVCu.



Safety & Security

Colour Options

...

KAT Sliding Patio Doors are available in a choice of 5 single colours and 2 dual colours, namely:

Single Colours:

  • 9910 Hipca White High Gloss
  • 7016 Anthracite Grey Matt
  • 9005 Black Matt
  • 7035 Light Grey Semi-gloss
  • 9001 Cream Matt

Dual Colours:

  • 9005 Black matt outside / 9910 Hipca White High Gloss inside
  • 7016 Anthracite Grey Matt outside / Hipca White High Gloss inside

Call into our Showrooms in either Newhaven or Macclesfield and we will can show you a colour chart demonstrating each of the RAL colours available.



Colours
