KAT Art Deco Windows

KAT Art Deco Windows

...

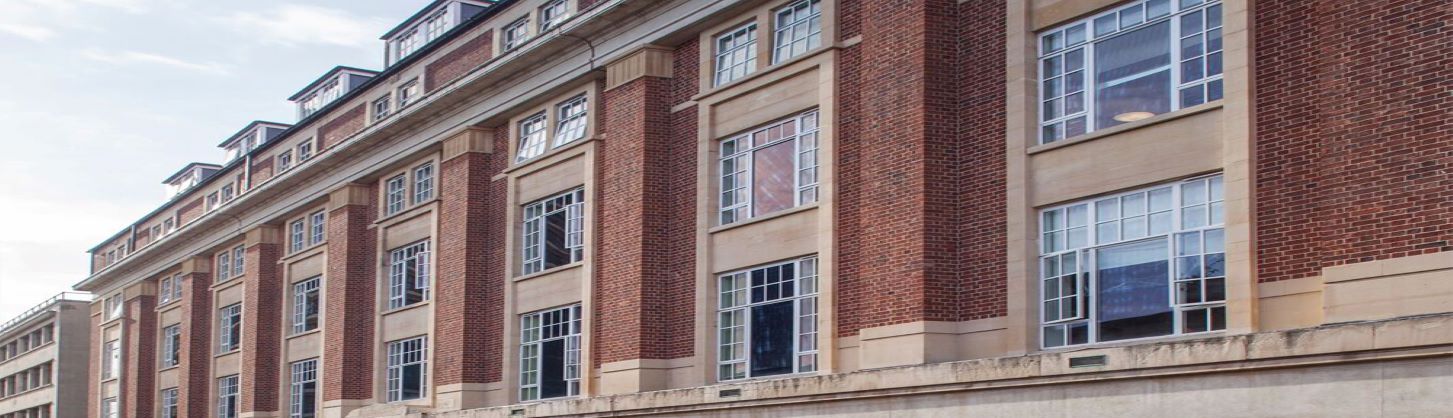

When looking for like-for-like replacements for traditional steel windows, KAT’s Art Deco Windows are ideal. The slim aluminium profiles help to retain the features of a buildings’ original windows and provide a retro look for heritage applications, such as listed building renovations.

You can say goodbye to draughty windows too. Whilst KAT’s Art Deco windows look like a heritage window, they have the added benefit of excellent thermal properties and meet PAS24 security to keep your home safe.

KAT Art Deco Windows are the ultimate alternative to Schuco Windows, made to your bespoke dimensions, to include arch-head or circular shaped windows if required.

Features of Art Deco Windows

  • Slim 59mm sightline to replicate traditional steel windows
  • Low maintenance, extremely durable, powder coated aluminium
  • U-Value down to W/m2K 1.5 with double glazed unit
  • Choose from a wide range of colours and finishes
  • Art Deco, Bulb End or Monkey Tail handle designs
  • 47mm slim frame depth that fixes into the cavity

Options

  • PAS 24 Security
  • Windows can be side hung, top hung, fixed or tilt and turn
  • Arched head and circular shaped windows available
  • Can be internally beaded if preferred


General Description
Where there is a design requirement to retain the slim lines of a buildings’ original steel windows, KAT's Art Deco Windows are manufactured from modern aluminium materials with the thermal properties and performance of a modern system.
Material
Aluminium
Manufacturer
KAT
Colour
Wide range of RAL colours with dual colours available
Outerframe and sash dimensions
Frame depth 47mm

Frame and sash sightline 59mm

Side hung
o/a min width 300mm
o/a max width 700mm
o/a max height 1400mm

Top hung
o/a max width 1400mm
o/a min height 275mm
o/a max height 1300mm

Max vent weight 40kgs
Sash options
Fixed
Single or double sash opening outwards
Side hung
Top hung
Tilt and Turn
Arch-headed or circular
Thermal performance
U-Value of 1.5 W/m2K (with sealed unit 1.0 W/m2K)
Polyamide thermal break provides enhanced thermal performance
Bead
Externally beaded as standard
Internal beading available
Cills
85mm stub cill, 135mm, 150mm, 190mm, 225mm or 300mm
Weathering
Weather test results:
Air 600pa
Water 600pa
Wind 2400pa
Hardware
Fully-suited art deco window furniture as standard with optional Monkey Tail or Bulb End designs available in a wide range of colours, including; anodised shades of gold, bronze, silver, grey and black.
Glazing
24mm, 28mm, 32mm or 36mm
Security
Multi-point locking

Gallery

...

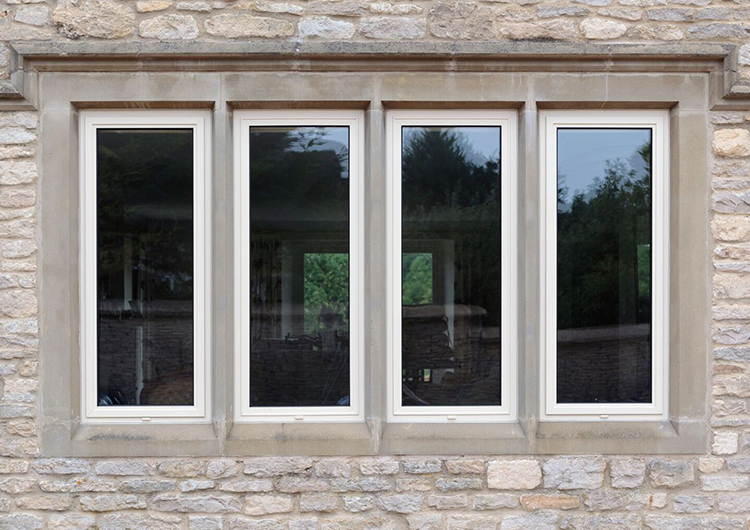

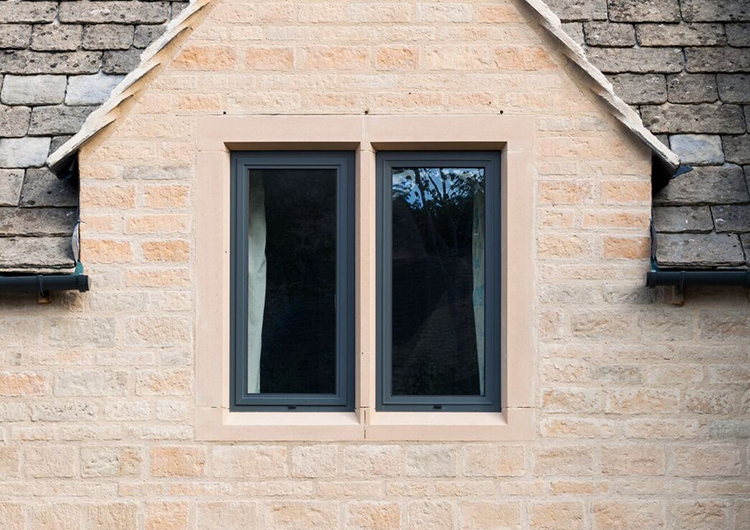

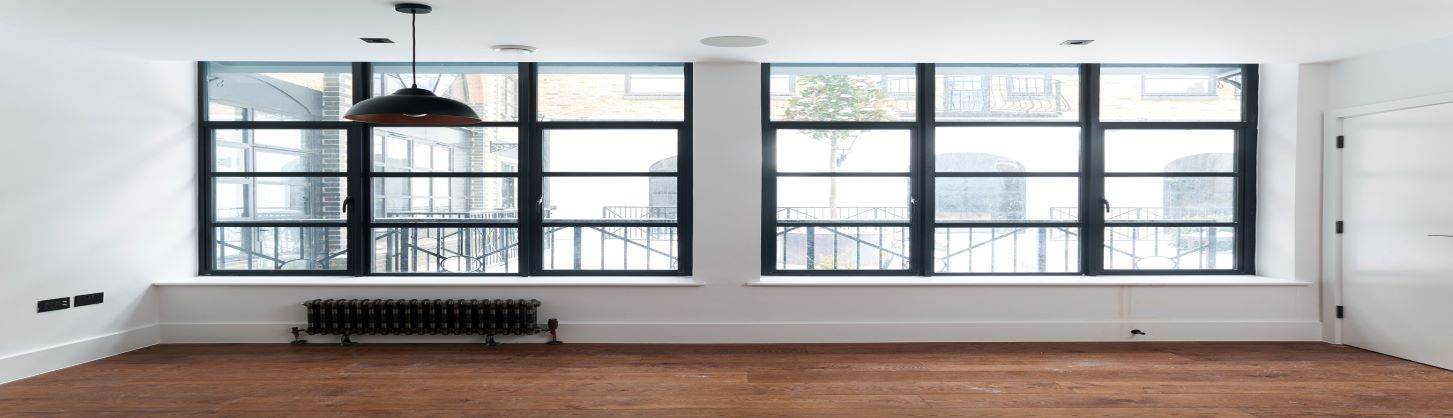

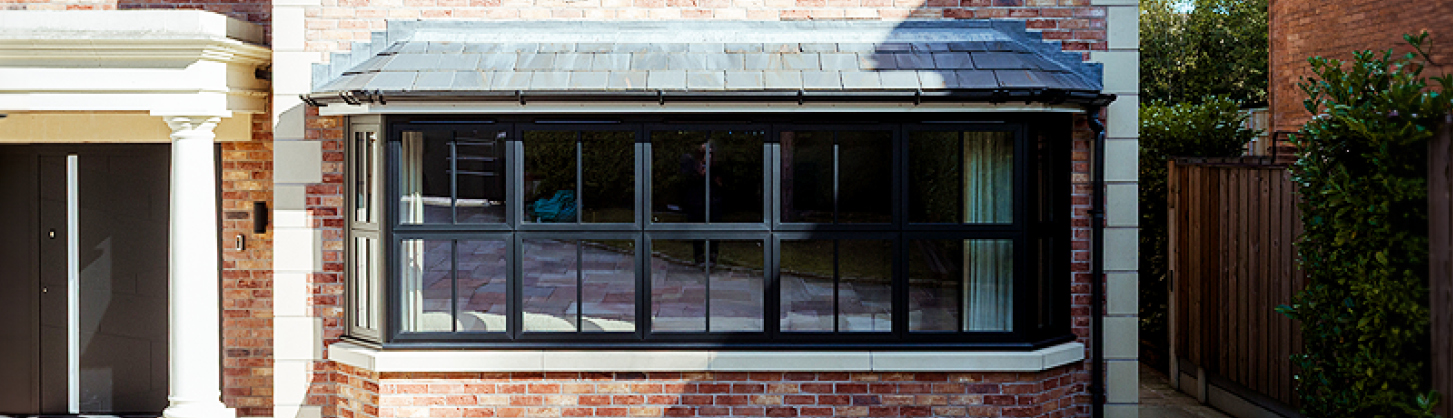

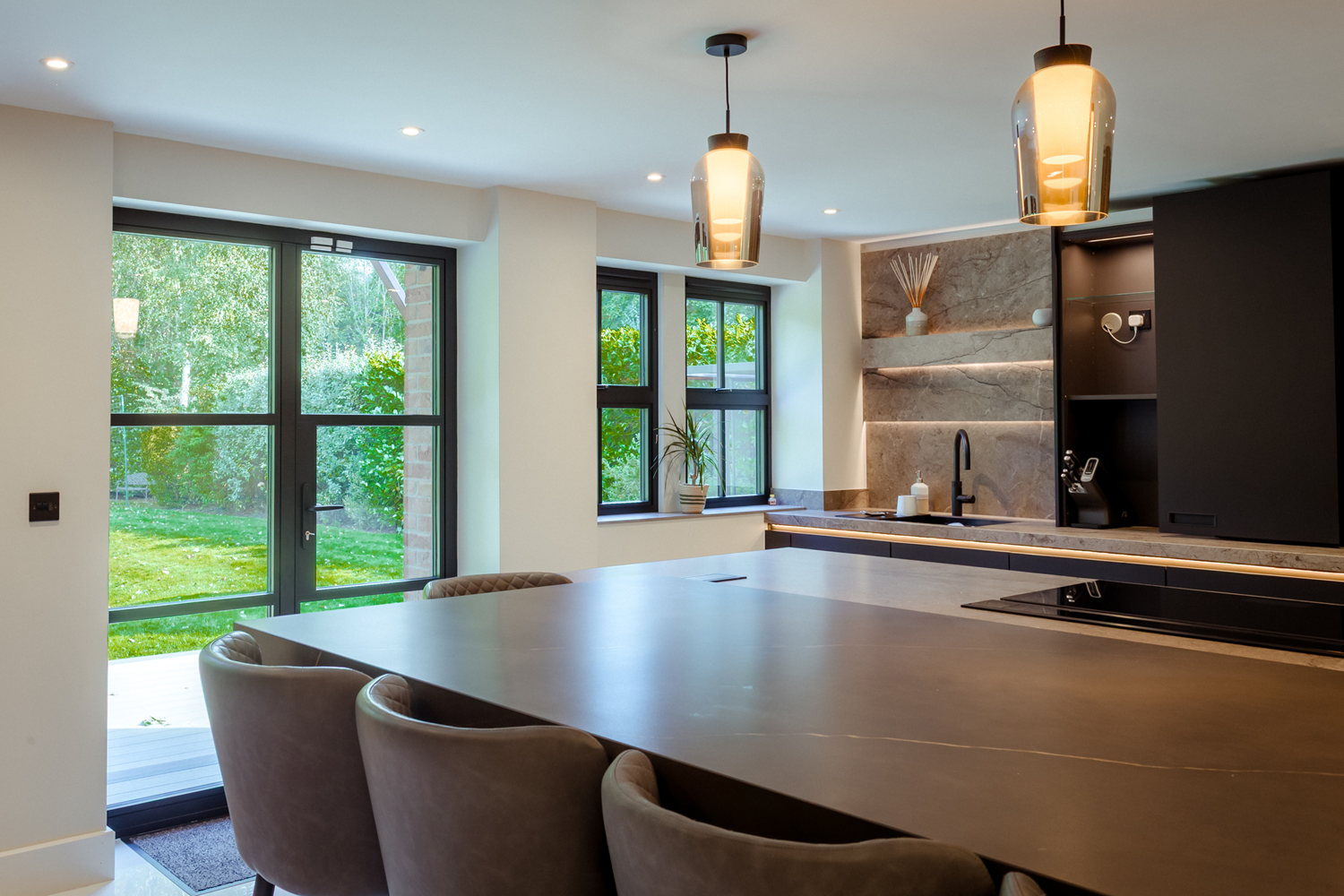

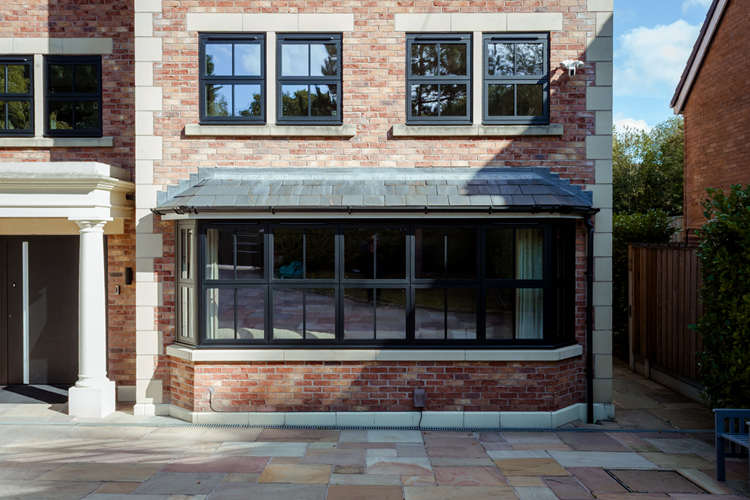

KAT’s Art Deco Windows have a 59mm slim sightline, as is often associated with traditional steel doors and windows.

They feature the outstanding thermal performance of a modern aluminium window system, achieving excellent U-values with double glazed units.  With slim profiles, KAT’s Art Deco windows are available in a number of designs, including top-hung, side- hung, fixed sash or tilt and turn.



Material Information

...

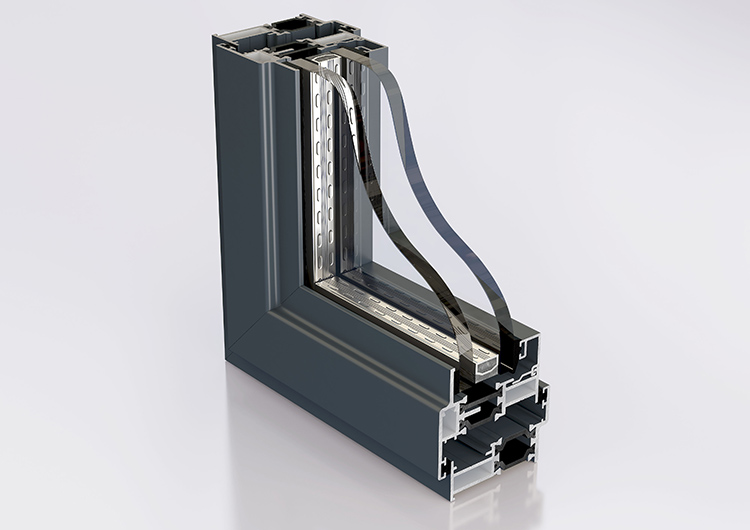

KAT’s Art Deco windows are designed to be built as a series of horizontal frames, to form a multi-part window achieving impressive widths and heights.

Aluminium is lightweight, strong and resistant to corrosion with the added benefit of being low maintenance, all that is required for aluminium windows is a wipe clean from time to time.





Materials

Accessories

...

A full suite of handle options is available to match KAT’s Art Deco doors, with Victorian and Art Deco styles including ‘Monkey Tail’ and ‘Bulb End’ options in any RAL colour. Or you can choose from eight anodised colours, including shades of gold, bronze, silver, grey and black.



Accessories

Safety & Security

...

Our windows feature a ‘multi-point locking’ system that secures the locking side of the sash.

In addition, we fit a face-mounted finger thrown locking bolt to keep your home secure.





Safety & Security

Colour Options

...

KAT Art Deco windows are available in a wide range of RAL finishes, including dual colours, with a different colour inside and outside.

If you live within 5 miles of the sea, we can offer a Marine Grade paint finish to protect the lifespan of your windows.



Colours
